We design and produce specialist
tooling and fixtures to support a wide range of
activities such as:
- Vibration Testing
- Aircraft Control System Component Testing
- Qualification and Life Testing
- Production Acceptance Testing
|
High force hydraulic flight control actuator
load cycling fixture |
|
| |
|
Engine
Hydraulic control actuator load cycling fixture
|
|

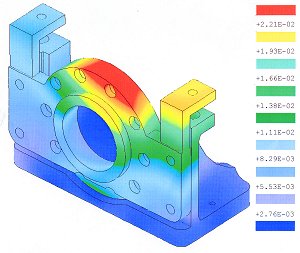

We use Finite Element Analysis to ensure strength and spring rates of fixture components. |
 |
|
|
|
| Universal actuator
load test fixture. |
 |
|
| |
|
|
|
Load test fixture
used to test an aircraft auxiliary power unit intake door
actuator under a range of loads. |
|
|
|
|

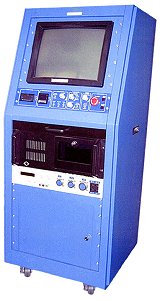

We design and build electronic controls for test equipment from
simple to sophisticated.
|
Hydraulic test stand electronic controls assembly showing
internal wiring
|
|
|

Typical electronic test box internal wiring
typical vibration assembly
|
|
|
|
 |
Used for qualification testing of an engine intake anti-icing valve
actuator.
|
|
| |
|
|
Qualification and life test
dynamometer for a vehicle side door drive clutch. The dynamometer is
used to evaluate design options, development, environmental
and cycle testing. The test unit also participates in
production by providing a variety of accelerated life tests.
The electronic console uses LabView software for controlling
temperature, humidity, load, speed and frequency. The console
records and provides printouts of all data. |
 |
|
| |
 |
Typical hydraulic test stand piping assembly mounted on a removable
tray for ease of maintenance
|
| |
|

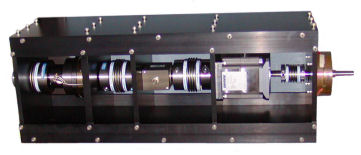

Low speed high torque dynamometer
|
 |
|
| |
 |
High speed low torque dynamometer
|
|
| |
